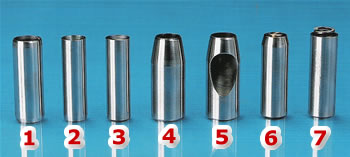

1. TYPE CENTRE BEVEL

This type is used mainly for cutting solid and corrugated board but also many other materials.

Side range:
Dia 2-40 mm (intermediate 2.5-13.5 mm) with bottom – dia 2-13.5 mm (depth of drilling 14 mm) tubular type – dia 2-40 mm

Outside diameter = cutting edge dia + 1 mm, with the exception of dia 10.5-11.5-12.5 and 13.5 = cutting edge dia + 0.5 mm
