A comprehensive programme of flat bed cutting and creasing rules for all carton and corrugated boards, rubber and gasket materials. Available in shaved and ground edge depending on product and/or application.
Standard edge configurations are available subject to type of rule.
Cutting Rules

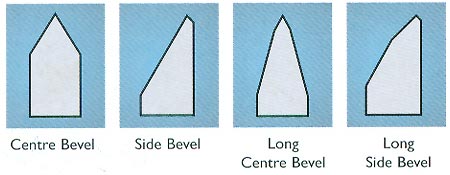

STANDARD EDGE CONFIGURATIONS
 |
Vertex
It is the user friendly rule that's harder than most conventional rules but bends almost like a soft rule. Side face decarburization makes it easy to work and it performs well on short and medium runs.
| Point Sizes: | 2 and 3 |
| Heights: | Up to 50mm |
| Availability: | Coil and metre lengths. |
| Hardness: | 400HV (44 HRC) |
| Applications: | Its versatility makes it particularly suitable for small and medium runs with carton, solid fibre and corrugated board. |
Label
|
Centre bevel cutting edge with an extremely high degree of accuracy and edge straightness for precise cutting and kiss-cutting.
It is also available with a side bevel cutting edge.
| Point Sizes: | 1,1 ½ and 2 |
| Heights: | 6 to 12mm |
| Availability: | Coil and metre lengths. |
| Hardness: | Medium - 350HV (35 HRC) , Hard – 400HV (41 HRC) |
| Applications: | The dedicated rule for label peoducers. |
Conventional Cutting Rules
 |
A broad range of standard multi-purpose cutting rules.
The cutting rules are available in a range of body hardness which are ideal for short runs.
| Point Sizes: | 2, 3 , 4 and 6. |
| Heights: | Up to 100mm |
| Availability: | Coil and metre lengths. |
| Hardness: | Sandvik 350 – 2pt 380HV (39 HRC) , 3pt/4pt 340HV (35 HRC) Sandvik 400 – 400HV (41 HRC) Sandvik 500 – 500HV (49 HRC) |
| Applications: | Ideal for short runs on a broad range of carton and corrugated box work. |
Stainless
 |
Produced specifically for use in hygienic or controlled cleanliness environments.
This centre beveled rule with a ground edge is non-rusting, readily formed and can be cleaned or washed down on line.
| Sizes: | Rules tckness 0.7mm and 1.00mm |
| Heights: | Only 23.80mm. |
| Availability: | Coil and metre lengths. |
| Hardness: | 400HV (41 HRC) |
| Applications: | Packaging for the food, beverage and pharmaceutical industries with demanding hygiene and cleanliness standards |
